Intelligent power management

Eaton power quality and power distribution products for IT, industrial and commercial environments.

Backup power and UPS

Uninterruptible power systems that keep critical equipment running through outages and power quality events.

Power distribution and circuit protection

Circuit breakers, switchgear and control systems for safe, reliable distribution.

Power metering and monitoring

Metering devices, protective relays, and communications hardware and software for monitoring and controlling power use.

Racks and enclosures

Racks and enclosures that house and protect IT and electrical equipment.

Eaton Featured Products

Eaton 9PX Gen2 UPS

The Eaton 9PX Gen2 is the second generation of the 9PX online double-conversion UPS for data centers, server rooms and edge sites. It replaces the original 9PX 5-6 kVA models and delivers 5 to 11 kW of power in as little as 4U of rack space.

Core Features

  • Silicon carbide (SiC) components deliver efficiency of up to 97.2% in online mode
  • 11 kW in 4U of rack space
  • ABM+ battery management predicts when batteries need replacing and extends battery life by up to 50%
  • Hot-swappable batteries
  • Cybersecure Gigabit Network Card included for remote management
  • 6 C39 and 6 C13 outlets on 5/6 kVA models, 8 C39 and 8 C13 outlets on 8/11 kVA models
Eaton 9PX Gen2 UPS

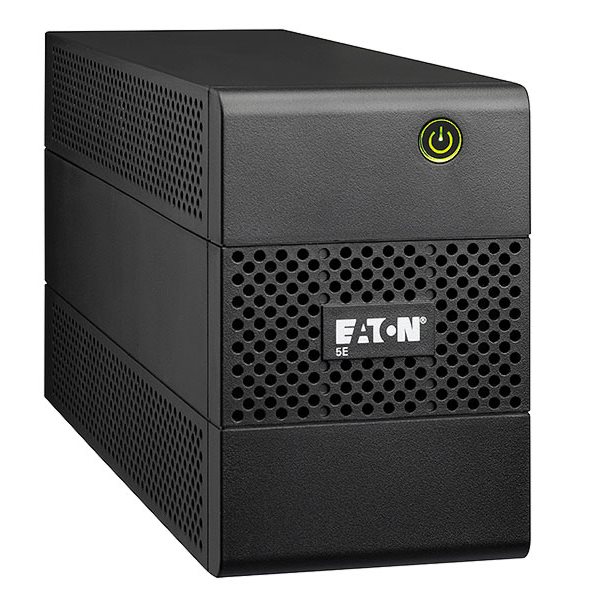

Eaton 5E Gen2 UPS

Eaton 5E Gen2 UPS

The Eaton 5E Gen2 is a line-interactive uninterruptible power system (UPS) for home and small-office use, with models from 550 to 2200 VA. Its double-boost Automatic Voltage Regulation (AVR) widens the input voltage window to 140-300 V, so the UPS conserves battery power through brownouts and surges.

Core Features

  • Double-boost AVR with a 140-300 V input window conserves battery power
  • Fanless operation up to 1200 VA for quiet offices and homes
  • Models from 550 to 2200 VA, with IEC and regional outlet variants (FR, DIN-IT, BS)
  • Manage and monitor the UPS with Eaton UPS Companion Software
  • Two-year warranty, extendable

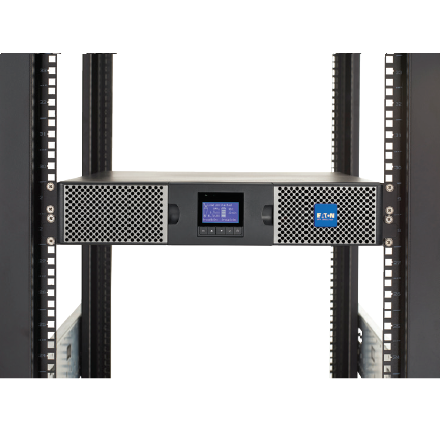

Eaton 9PX Lithium-ion UPS

The Eaton 9PX lithium-ion rackmount and tower UPS provides 8 to 10 years of life expectancy for UPS and batteries. The 9PX lithium-ion UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. The 9PX lithium-ion UPS, available in rackmount and tower form, has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.

Core Features

  • Li-Ion batteries for longer life
  • On-line double conversion topology, with automatic by-pass and PFC system
  • Energy Star UPS (up to 93.5% efficiency in Online mode)
  • More real power in watts, Unity power factor (VA=W)
  • 5 years full warranty
  • Flexible RT form factor : convertible Tower / 2U Rack
  • Easy to operate : next-generation multilingual LCD display
  • Manageable outlets groups (2 groups) with Energy metering
  • 1 USB port + 1 Serial + 3 dry contacts (optocouplers on DB9)
  • 1 Slot for optional com card (Network Management card, ModBus or Contacts/Serial cards)
  • Monitoring & shutdown software for VMware, Hyper-V etc..
  • Long backup time with up to 4 optional EBM cabinets, with automatic detection
  • All necessary hardware for rack & tower mounting included
Eaton 9PX Lithium-ion UPS

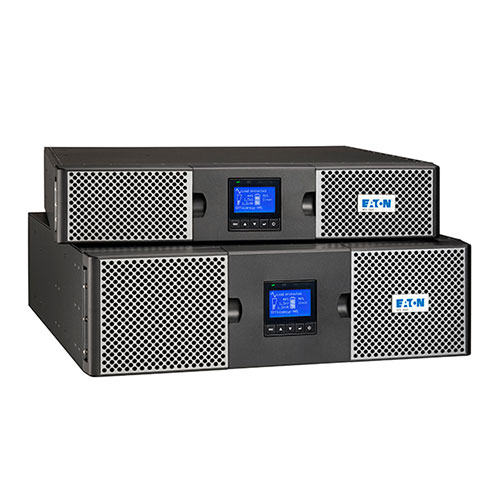

Eaton 9PX Marine

Eaton 9PX Marine

The 9PX Marine UPS is specially developed for marine and offshore platforms. It is the first uninterruptible power system of its size offering unity power factor(VA=W). It delivers 11% more power than any other UPS. Its internal circuit board has special coating to prevent salt spray corrosion and support high temperature working environments. 9PX marine UPS is Energy Star, DNV-GL, CE,UL certified.

Core Features

  • Guarantees power supply continuity with online double-conversion topology and automatic bypass functionality
  • Can be applied to various user scenarios as a 50 Hz or 60 Hz frequency converter
  • Allows real-time monitoring of the UPS and equipment with an eight-language LCD card
  • Supports RS232, USB, optional communication cards and EPO communication ports
  • Supports rack mounting and is compatible with standard network cabinets
  • Supports an optional hot swappable expansion battery module to lengthen discharge time
  • Uses ABM battery management technology to extend battery life
  • Supports optional input filter accessories to reduce harmonic interference
  • Complies with many international certifications such as DNV-GL, CE and US Energy Star® certifications

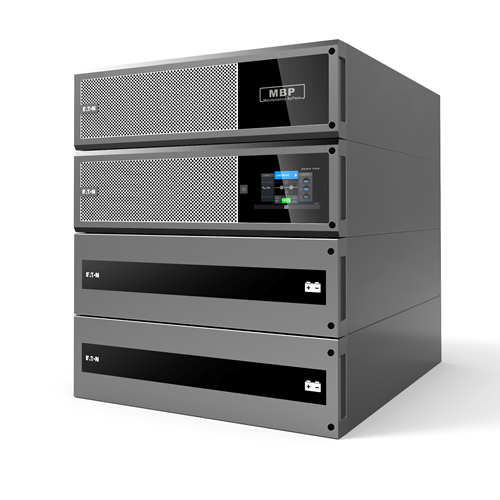

Eaton 9SX (AP) UPS

The Eaton 9SX (AP) UPS range provide stable power for Critical IT Infrastructure, Industrial, Manufacturing, and Medical devices. The UPS uses advanced technologies to improve on power and dimensional efficiencies, to help with cost savings in both the electricity and space aspects. This range of UPS incorporates robust designs to enhance durability, making it suitable for a wider range of applications.

Core Features

  • Wide range of input/output configuration combinations (configurable to single phase or 3 phase)
  • Variable DC voltage (±192V or ±240), as well as adjustable recharge current (up to 13A) to suit various battery banks and multiple EBMs.
  • ABM® technology increases battery service life by up to 50%.
  • Colourful touch card with built-in gravity sensor that automatically rotates the screen to match either rack (horizontal) or tower (vertical) configuration.
  • Compact 3RU height per module with <600mm depth for convenient deployment.
  • Parallel up to 3 UPS for N+1 redundancy or capacity expansion.
  • 9SX integrates with leading virtualisation environments and cloud orchestrations tools with an optional network card and IPM Software
Eaton 9SX UPS

Power management software

Monitor, manage and protect your power infrastructure.

Brightlayer Data Centers

Data center performance management and electrical monitoring software.

Intelligent Power Protector

Software that shuts down protected systems gracefully during a power event.

UPS Companion

Monitoring software for small offices and homes.
