The Enterprise Data Platform
From the edge to your data center – transform your data estate. Deliver data sovereignty with TrueNAS Enterprise storage solutions.
What is TrueNAS?
TrueNAS is a high performance data platform for managing any type of data, delivered through turnkey self-healing storage appliances and expert around-the-clock support.
Performance
Low latency and high throughput keep your workloads on schedule, from powering VFX pipelines to training AI models. Keep your teams productive without bottlenecks.
Security
Built on an open core model critical code is visible, vetted, and continuously tested by both the engineering team and the largest storage community in the world.
Resilience
Integrated data checksums, automatic corruption detection, and self-healing capabilities powered by OpenZFS silently protect your data. Even when things go wrong, your data stays right.
Scalability
From 20TB to 40PB and beyond, TrueNAS gives you the freedom to grow without overprovisioning or overpaying. Enterprise storage that's built to scale smarter, not just bigger.
Choose Your Platform
Purpose-built appliances for every workload from edge deployments to petabyte-scale data centers.
Series Products
Every available product in the TrueNAS Enterprise lineup. Specifications sourced directly from truenas.com.

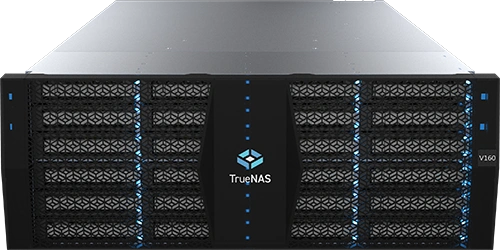

V-Series Hybrid Flash
Enterprise HA · Hybrid · 4UEngineered to maximize versatility, the V-Series delivers performance and scale without sacrificing simplicity. The big brother of the H-Series, designed for mission-critical environments with multiple storage media options at larger scales.
| Max Capacity | 35 PB |
| Max Throughput | 30 GB/s |
| Max Drives Supported | 35 PB Raw HDD / 8 PB Raw NVMe |
| Max Expansion Shelves | 14× ES102 |
| Appliance Height | 4U |
| High Availability | Dual Controller (32 Core / 64 Threads) |
| Networking | 2× 10/25/40/100/200 GbE & 1× 400 GbE per controller |
V-Series All-Flash NVMe
Enterprise HA · All-Flash · 4UMaximum all-NVMe throughput in the same 4U V-Series chassis. Gen4/Gen5 NVMe media across both controllers delivers 60 GB/s for AI/ML training, large-scale VFX rendering, and the most latency-sensitive workloads.
| Max Capacity | 20 PB |
| Max Throughput | 60 GB/s |
| Max Drives Supported | 5 PB Raw HDD / 20 PB Raw NVMe |
| Max Expansion Shelves | 6× ES24N |
| Appliance Height | 4U |
| High Availability | Dual Controller (32 Core / 64 Threads) |
| Networking | 2× 10/25/40/100/200 GbE & 1× 400 GbE per controller |
TrueNAS M30
Enterprise HA · Entry Level · 4U–12UEntry-level M-Series for file servers, backup targets, and mid-sized virtualisation. Up to 2 PB capacity and 3 GB/s throughput with dual-controller HA and up to 84 drives supported.
| Max Capacity | 2 PB |
| Max Throughput | 3 GB/s |
| Max Drives Supported | 84 |
| Max Expansion Shelves | 2× ES-24 or 1× ES-60 |
| Appliance Height | 4U – 12U |
| High Availability | Yes |
| Networking | 2× 10/25/40 GbE (optical) + 2× 10GBase-T, FC: 2× 16 Gb |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
TrueNAS M40
Enterprise HA · Mid-Range · 4U–12UMid-range M-Series for departmental virtualisation, media production, and mixed file/block workloads. Up to 5.5 PB and 6 GB/s with 100 GbE networking and 228 drives supported.
| Max Capacity | 5.5 PB |
| Max Throughput | 6 GB/s |
| Max Drives Supported | 228 |
| Max Expansion Shelves | 2 |
| Appliance Height | 4U – 12U |
| High Availability | Yes |
| Networking | 2× 10/25/40/100 GbE (optical) + 2× 10GBase-T, FC: 4× 16 Gb |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
TrueNAS M50
Enterprise HA · High-End · 4U–36UHigh-end M-Series for heavy file serving, high-throughput backup, and private cloud. Up to 15 PB and 10 GB/s with 840 drives and 8 expansion shelves.
| Max Capacity | 15 PB |
| Max Throughput | 10 GB/s |
| Max Drives Supported | 840 |
| Max Expansion Shelves | 8 |
| Appliance Height | 4U – 36U |
| High Availability | Yes |
| Networking | 2× 10/25/40/100 GbE (optical) + 2× 10GBase-T, FC: 4× 16 Gb or 2× 32 Gb |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
TrueNAS M60
Enterprise HA · Top of Range · 4U–52UFlagship M-Series to 30 PB raw and 20 GB/s. Up to 1,248 drives, 12 expansion shelves, and 4× 100 GbE per controller. Maximum-scale M-Series for the most demanding data centre environments.
| Max Capacity | 30 PB |
| Max Throughput | 20 GB/s |
| Max Drives Supported | 1,248 |
| Max Expansion Shelves | 12 |
| Appliance Height | 4U – 52U |
| High Availability | Yes |
| Networking | Up to 4× 10/25/40/100 GbE (optical) + 2× 10GBase-T, FC: 4× 32 Gb |
| Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
TrueNAS F60
All-Flash NVMe · Dual Controller · 2UEnterprise all-flash NVMe performance in a compact 2U dual-controller HA chassis. The F60 delivers 20 GB/s bandwidth with Gen 4 NVMe drives for ultra-low latency. Built for HPC, high-IOPS databases, and AI inference.
| Max Capacity | 4 PB |
| Max Throughput | 20 GB/s |
| Max Drives Supported | 24 |
| Max NVMe Expansion Shelves | 2 |
| Appliance Height | 2U |
| High Availability | Yes |
| Networking | Up to 4× 40/100 GbE (optical), 2× 10GBase-T, FC: 4× 32 Gb |

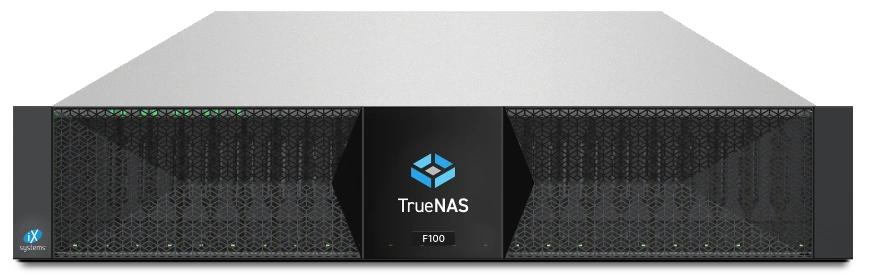

TrueNAS F100
All-Flash NVMe · Max Throughput · 2UF-Series flagship — 30 GB/s bandwidth, 24 NVMe drives per 2U node, up to 6 NVMe expansion shelves. Scale to 10 PB total. Supports Fast Dedup (TrueNAS 25.04+) with sub-millisecond latency even during deduplication.
| Max Capacity | 10 PB |
| Max Throughput | 30 GB/s |
| Max Drives Supported | 24 |
| Max NVMe Expansion Shelves | 6 |
| Appliance Height | 2U |
| High Availability | Yes |
| Networking | Up to 6× 40/100 GbE (optical), 2× 10GBase-T, FC: 4× 32 Gb |
TrueNAS R20
Single Controller · 2U Hybrid · EntryCompact 2U hybrid NAS — the cost-effective entry point of the R-Series. Up to 2.9 PB and 8 GB/s with 132 drives supported. Ideal for file serving, backup targets, and departmental storage.
| Max Capacity | 2.9 PB |
| Max Throughput | 8 GB/s |
| Max Drives Supported | 132 |
| Max Expansion Shelves | 2 |
| Appliance Height | 2U – 10U |
| High Availability | No |
| Networking | 2× 10/25/40/100 GbE, 2× 32 Gb Fibre Channel |
| Certifications | Veeam, HYCU, Commvault Ready |
TrueNAS R50
Single Controller · 4U High-Density HybridHigh-density 4U hybrid platform for mid-size deployments. Up to 5 PB and 10 GB/s with 252 drives supported. Maximum HDD density per rack unit — ideal for surveillance, CCTV, and large-scale backup.
| Max Capacity | 5 PB |
| Max Throughput | 10 GB/s |
| Max Drives Supported | 252 |
| Max Expansion Shelves | 2 |
| Appliance Height | 4U – 12U |
| High Availability | No |
| Networking | 2× 10/25/40/100 GbE, 2× 32 Gb Fibre Channel |
| Certifications | Veeam, HYCU, Commvault Ready |
TrueNAS R60
Single Controller · 1U All-Flash · 400 GbEEngineered for AI, HPC, and Business Analytics — 400 Gb/s performance in a compact 1U footprint. First R-Series model with 400 GbE. PCIe Gen5 and DDR5. Up to 7 PB and 60 GB/s.
| Max Capacity | 7 PB |
| Max Throughput | 60 GB/s |
| Max Expansion Shelves | 2× NVMe or 4× SAS |
| Appliance Height | 1U – 17U |
| High Availability | No |
| Networking | 4× 25/100/200 GbE, 2× 400 GbE |
| Certifications | Veeam, HYCU, Commvault Ready |
TrueNAS H10
2U Compact HA · EntryEntry H-Series with 12 tri-mode bays supporting SAS HDDs, SAS SSDs, or NVMe SSDs. Optional dual-controller HA. Up to 1.8 PB hybrid or 180 TB all-NVMe. Ideal for edge deployments, branch offices, and smaller workloads where power efficiency is a priority.
| Max Capacity | 1.8 PB (with 26 TB drives) |
| All-NVMe Flash Max | 180 TB |
| Max Throughput | 2 GB/s |
| Max Drives Supported | 72 |
| Max Expansion Shelves | 1× ES24 or ES60 |
| High Availability | Yes |
| Networking | 4× 1GBase-T; up to 4× 10GBase-T/SR or 4× 25GbE SR; FC: 2× 16 Gb, 2× 32 Gb |
TrueNAS H20
2U Compact HA · Mid-RangeMid-range H-Series with TrueCache NVDIMM write acceleration. Supports up to 114 drives with expansion. Up to 3 PB hybrid or 360 TB all-NVMe. Well-suited for VM block storage, media NAS, file sharing, and mid-market backup repositories.
| Max Capacity | 3 PB |
| All-NVMe Flash Max | 360 TB |
| Max Throughput | 4 GB/s |
| Max Drives Supported | 114 |
| Max Expansion Shelves | 1× ES24, ES60, or ES102 |
| High Availability | Yes |
| Networking | 4× 1GBase-T; up to 4× 10GBase-T/SR or 4× 25GbE SR; up to 2× 40/100GbE SR; FC: 2× 16 Gb, 2× 32 Gb |
TrueNAS H30
2U Compact HA · Flagship · NAB 2025 Best of ShowTop H-Series — twice as fast as the H20 at 8 GB/s. Up to 720 TB all-NVMe in 2U. Tri-mode bays support NVMe, SAS HDD, or SAS SSD per bay. Supports Fast Dedup (TrueNAS 25.04+). Won two NAB 2025 Best of Show Awards. Upgrades from H10/H20 without data migration.
| Max Capacity | 3 PB |
| All-NVMe Flash Max | 720 TB |
| Max Throughput | 8 GB/s |
| Max Drives Supported | 114 |
| Max Expansion Shelves | 1× ES24, ES60, or ES102 |
| High Availability | Yes |
| Networking | 4× 1GBase-T + 2× 10GBase-T; up to 4× 10GBase-T/SR or 4× 25GbE SR; up to 2× 40/100GbE SR; FC: 2× 32 Gb |
| Data Services | Fast Dedup (TrueNAS 25.04+), compression, snapshots, replication, TrueCloud Backup |

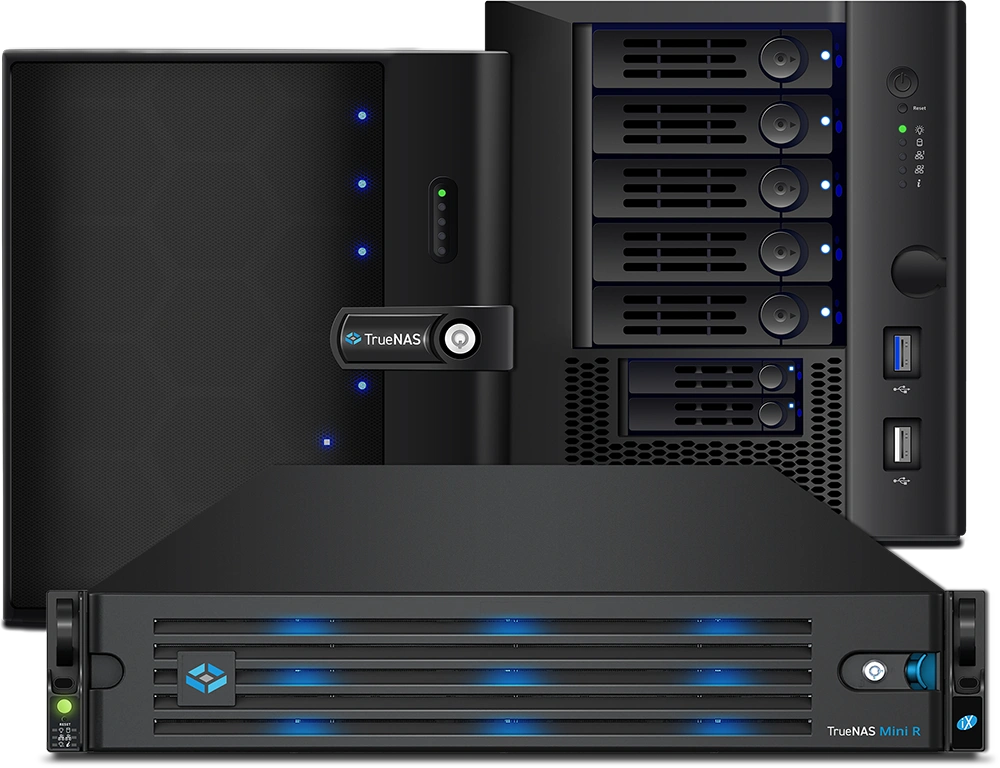

TrueNAS Mini X
Desktop Tower · Entry · 4× 1 GbEEntry-level Mini desktop tower with 5+2 hot-swap bays, octa-core Intel CPU, and 32 GB ECC RAM. Full TrueNAS ZFS feature set — snapshots, replication, SMB/NFS/iSCSI, self-healing data protection, and container apps. Ideal for SOHO and small business file sharing.
| Drive Bays | 5× 3.5" + 2× 2.5" hot-swap (7 total) |
| CPU | Octa-core Intel C3758 |
| Memory | 32 GB ECC RAM |
| Form Factor | Desktop Tower |
| Networking | 4× 1 GbE |
| Storage Media | SATA HDD or SSD |
| Remote Management | No dedicated IPMI |
| Data Protection | Full OpenZFS (checksums, self-healing, snapshots, replication) |
| Applications | TrueNAS Apps (containers), plugins, VMs |
| Protocols | SMB, NFS, iSCSI, S3 Object |
TrueNAS Mini X+
Desktop Tower · Great Performance · Dual 1/10 GbEPerformance Mini tower with 5+2 hot-swap bays, octa-core Intel CPU, and dual 1/10GbE networking. ECC DDR4 RAM and M.2 NVMe cache slots. The sweet spot for creators, developers, and SMBs that need 10 GbE without rack infrastructure.
| Drive Bays | 5× 3.5" + 2× 2.5" hot-swap (7 total) |
| CPU | Octa-core Intel C3758 |
| Memory | 32 GB ECC RAM |
| Form Factor | Desktop Tower |
| Networking | Dual 1/10 GbE |
TrueNAS Mini R
1U Rackmount · Maximum Capacity · Dual 1/10 GbEThe only rack-mount Mini — 12 lockable hot-swap 3.5" bays for maximum capacity. Octa-core Intel CPU, 32 GB ECC RAM, dual 1/10GbE, full IPMI out-of-band management, and redundant power supplies. Low-noise design suited for office environments, branch offices, and remote sites.
| Drive Bays | 12 lockable hot-swap 3.5" bays |
| CPU | Octa-core Intel C3758 |
| Memory | 32 GB ECC RAM |
| Form Factor | 1U Rackmount |
| Networking | Dual 1/10 GbE |
Solutions Offered
Explore our wide range of cutting-edge technologies.
A storage infrastructure that contains only flash memory drives instead of spinning-disk drives.
A dedicated file storage that enables multiple users and heterogeneous client devices to retrieve data from centralized disk capacity.
a dedicated, independent high-speed network that interconnects and delivers shared pools of storage devices to multiple servers.
A data storage method that prevents changes to data after it's written. It's used to protect data from unauthorized changes, deletion, or ransomware attacks.
Secure storage is a protected area or mechanism that keeps sensitive information safe from unauthorized access, tampering, or disclosure. Secure storage can be used for physical items or electronic data.
